Maxi Cobra 9mm

MAXI COBRA RODDING SYSTEM 11mm

  • High quality 11mm fibreglass rod
  • Lengths from 50m – 350m
  • Dimensions W 1050mm x H 1180mm x D 530mm.
SKU: N/A Category:

Ritelite’s Maxi Cobra conduit duct rodding systems provide a robust, compact, labour saving solution when installing cables in ducts, threading draw ropes through pipes or surveying drains with CCTV cameras.

Our high quality, 11mm fibreglass rod has a radially reinforced construction, is PP coated and spooled onto robust zinc plated steel frames with in-built parking brake. Total overall dimensions W 1050mm x H 1180mm x D 530mm.

Key Features

Maxi 11 - Robust

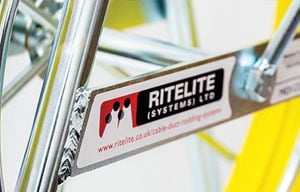

ROBUST

Robust, zinc plated steel frames

Maxi 11 - Wheel

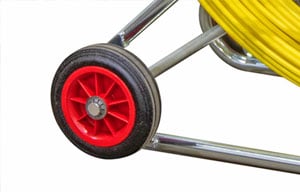

WHEELS

Wheels for ease of manoeuvrability

Maxi 11 - Safty Break

SAFETY BRAKE

Integral fully adjustable brake system fitted as standard

Key Technical Data

Maxi 11 - Diameter 80mm-250mm
Maxi 11 - Load 7600Kg
Maxi 11 - Max Bend 800mm
Maxi11 - Dimensions

Standard Maxi Cobra rodding system lengths.

Other lengths are available on request.

11mm Rod

Product Code Diameter Length Weight
MAXCO50C11 11mm 50m 32.4Kg
MAXCO100C11 11mm 100m 39.79Kg
MAXCO120C11 11mm 120m 42.75Kg
MAXCO150C11 11mm 150m 47.19Kg
MAXCO200C11 11mm 200m 54.58Kg
MAXCO250C11 11mm 250m 61.98Kg
MAXCO300C11 11mm 300m 69.37Kg
MAXCO350C11 11mm 350m 76.77Kg

Additional information

Rod Diameter

11mm
Length

50m, 80m, 100m, 120m, 150m, 200m, 250m, 300m, 350m
Dimensions W x L x H

530mm x 1050mm x 1180mm
Pipe Diameter

80 – 250mm
Breaking Load

7600Kg
Max Bending Radius

800mm

Downloads

Download the Cobra Rodding Brochure
Maxi Cobra 11mm datasheet

Accessories

ImageSKUProductDetailsQuote
End Fitting 11mm [sku] MAXCOEF/11
MAXCOEF/11End Fitting 11mm rodView Product
MAXCOFLE/SP
MAXCOFLE/SPFlexi End Spring for Medi Cobra and Maxi CobraView Product
Brass Guide Tip 9mm/11mm/14mm [sku] MAXCOGT
MAXCOGTBrass Guide Tip - 9mm/11mm/14mm RodView Product
Roller Guide Tip 9/11mm [sku] MAXCORGT
MAXCORGTRoller Guide Tip - 9mm/11mmView Product
Sonde Adapto M12 to M10 [sku] MAXCOAD/911
MAXCOAD/911Sonde Adaptor - M12 to M10View Product
Adaptor 3/4 to M10 Universal [sku] MAXCO/H2397
MAXCO/H2397Adaptor Universal 3/4" to M10View Product
CL-YIRSD-33-SA
CL-YIRSD-33-SAAdaptor M12 to 3/4 UniversalView Product
Adaptor M12 Female to Lockfast [sku] MAXCO/M12LF
MAXCO/M12LFAdaptor M12 Female to LockfastView Product
Flexi Sonde Adaptor M12 to M10 [sku] MAXCOFLE/SA
MAXCOFLE/SAFlexible Sonde Adaptor - M12 to M10View Product
Duct Sonde 33kHz [sku] CL/YIRSD-33
CL/YIRSD-33Duct Sonde (33KHZ)View Product
General Purpose Sonde 8kHz [sku] CL/YIRS-8
CL/YIRS-8General Purpose Sonde (8KHZ)View Product
General Purpose Sonde (33KHZ)
CL/YIRS-33General Purpose Sonde (33KHZ)View Product
Metal Pipe Sonde [sku] CL/YIRS-512
CL/YIRS-512Metal Pipe SondeView Product
Splice Repair Kit for 9,11, 14mm Cobra Rodding Systems
MAXCOPACK/11/1Maxi 11mm Repair KitView Product
End Repair Kit for 9,11, 14mm Cobra Rodding Systems
MAXCOPACK/11/2Maxi Cobra 11mm Rod Spares KitView Product
Accessory Kit for 9,11, 14mm Cobra Rodding Systems
MEDCO/***/ACCKITMedi, Maxi & Maxi High Capacity Cobra Accessory KitView Product
Repair Splice 9mm [sku] MAXCORK/9
MAXCORK/11Repair Splice 11mmView Product
Rapid Epoxy GLue
MINI-GLUEMini-GlueView Product
Rapid Epoxy Glue
MAXGLUERapid Epoxy GlueView Product
Spare Rod 9mm [sku] MAXCO***S9
MAXCO***S11Maxi Cobra 11mm Spare RodView Product
Brake Handle for Maxi Cobra [sku] MAXCOBH
MAXCOBHReplacement Brake Handle for Maxi CobraView Product
Brake Disc Maxi Cobra [sku] MAXCOBD
MAXCOBDBrake Disc Maxi Cobra ReelView Product
Midi Cobra Steel Shackel [sku] MIDCOSSH
MAXCOSSHStainless Steel Shackle for Medi Cobra and Maxi CobraView Product
Split Pin [sku] MAXCOWSP
MAXCOWSPReplacement Split Pin for AxelView Product
Cobra Wheel [sku] MAXCOWH
MAXCOWKReplacement WheelView Product
Rod Guiding Eye [sku] MAXCO_POLO-COMPLETE
MAXCO/POLO-COMPLETERod Guiding Eye Complete - MAXIView Product
Black Ball End M12 [sku] MAXCO/BE4
MAXCO/BE4Black Ball End M12View Product
Maxi Cobra Frame [sku] MAXCOFR
MAXCOFRReplacement Maxi FrameView Product
