MINI COBRA RODDING SYSTEM 4.5mm
- High quality 4.5mm fibreglass rod
- Lengths from 20m – 150m
- Dimensions W 480mm x H 530mm x D 200mm

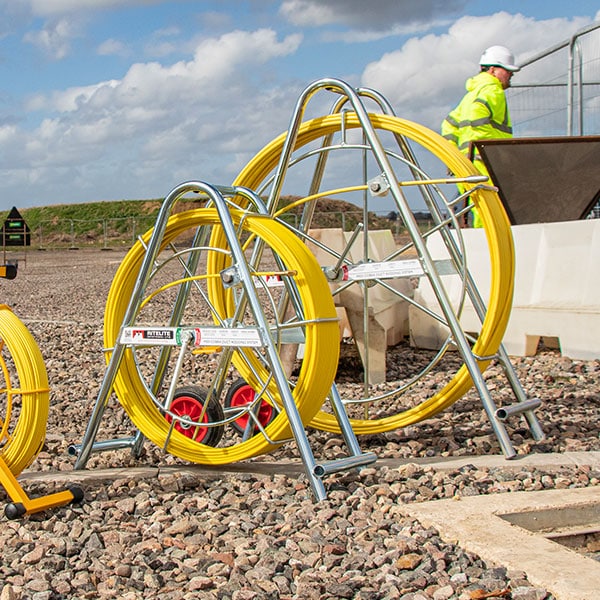

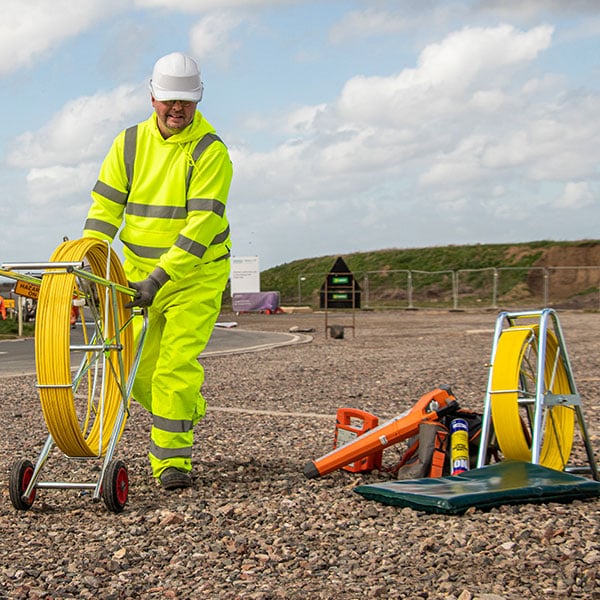

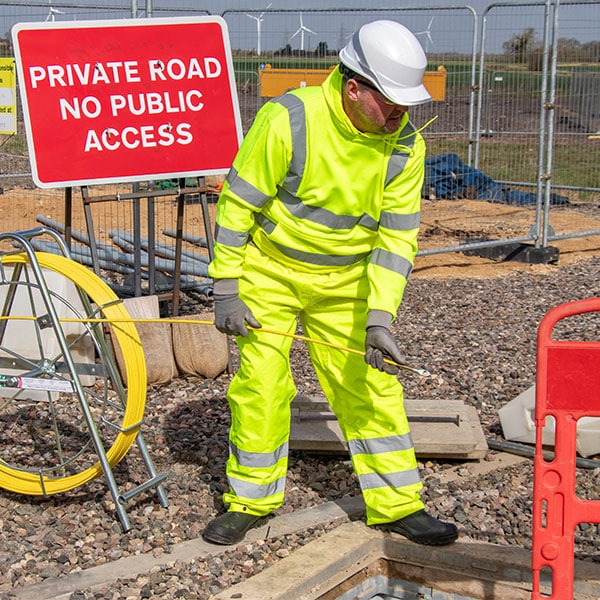

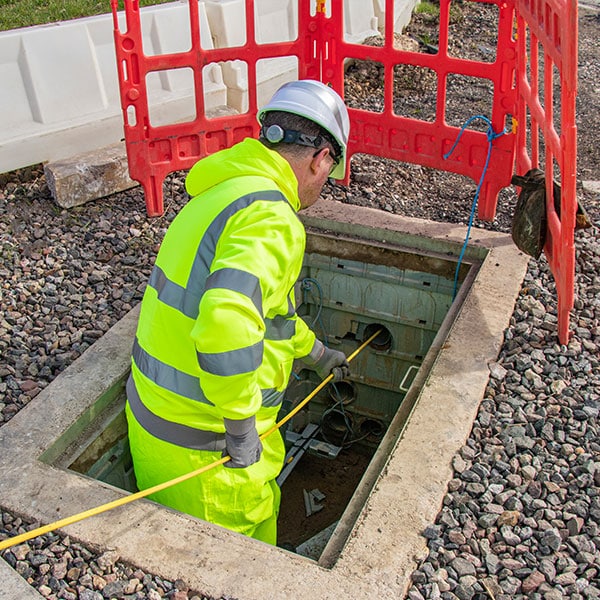

Ritelite’s Mini Cobra conduit duct rodding systems provide a robust, compact, labour saving solution when installing cables in ducts, threading draw ropes through pipes or surveying drains with CCTV cameras.
Our high quality, fibreglass rod has a radially reinforced construction, is PP coated and spooled onto robust zinc plated steel frames with in-built parking brake. Total overall dimensions W 480mm x H 530mm x D 200mm.
Key Features
ROBUST
Robust, zinc plated steel frames
LIGHTWEIGHT AND COMPACT
Fits in small vehicles
SAFETY BRAKE
Integral fully adjustable brake system fitted as standard
Key Technical Data
Standard Mini Cobra rodding system lengths.
Other lengths are available on request.
4.5mm Diameter Rod
| Product Code | Diameter | Length | Weight |
| MIDCO20C4.5 | 4.5mm | 20m | 4.45Kg |
| MIDCO30C4.5 | 4.5mm | 30m | 4.68Kg |
| MIDCO40C4.5 | 4.5mm | 40m | 4.9Kg |
| MIDCO50C4.5 | 4.5mm | 50m | 5.13Kg |
| MIDCO60C4.5 | 4.5mm | 60m | 5.35Kg |
| MIDCO80C4.5 | 4.5mm | 80m | 5.8Kg |
| MIDCO100C4.5 | 4.5mm | 100m | 6.25Kg |
| MIDCO120C4.5 | 4.5mm | 120m | 6.7Kg |
| MIDCO150C4.5 | 4.5mm | 150m | 7.38Kg |
To request a quote for a Mini Cobra Rodding System please select the diameter of rod required and also the length required and Add to quote. One of our experienced sales team will send you a quotation for all items required.
Additional information
| Rod Diameter | 4.5mm |
|---|---|
| Length | 20m, 30m, 40m, 50m, 60m, 80m, 100m, 120m, 150m |
| Dimensions W x L x H | 200mm x 480mm x 530mm |
| Pipe Diameter | 30 – 80mm |
| Breaking Load | 1100Kg |
| Max Bending Radius | 150mm |
Accessories
![End Fitting 4.5mm [sku] MIDCOEF/4.5](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOEF_4o5-1.jpg "End Fitting 4.5mm [sku] MIDCOEF/4.5")
![Brass Guide Tip 4.5mm/6mm [sku] MIDCOG](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOGT-1.jpg "Brass Guide Tip 4.5mm/6mm [sku] MIDCOG")
![Roller Guide Tip 4.5mm/6mm [sku] MIDCORGT](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCORGT.jpg "Roller Guide Tip 4.5mm/6mm [sku] MIDCORGT")
![Sonde Adaptor M5 to M10 [sku] MIDCOSA](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOSA-1.jpg "Sonde Adaptor M5 to M10 [sku] MIDCOSA")
![Adaptor M5 to 3/4 [sku] MIDCO/M5UN](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCO_M5UN-1.jpg "Adaptor M5 to 3/4 [sku] MIDCO/M5UN")
![Flexi Sonde Adaptor M5 to M10 [sku] MIDCOFLE/SA](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOFLE_SA-1.jpg "Flexi Sonde Adaptor M5 to M10 [sku] MIDCOFLE/SA")
![Repair Kit 4.5mm [sku] MAXCOPACK/4.5/1](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOPACK_4o5_1-1.jpg "Repair Kit 4.5mm [sku] MAXCOPACK/4.5/1")
![Midi 4.5mm Spares Kit [sku] MIDCOPACK/4.5/2](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOPACK_4o5_2-1.jpg "Midi 4.5mm Spares Kit [sku] MIDCOPACK/4.5/2")
![Cobra Midi Accessory Kit [sku] MIDCO/***/ACCKIT](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCO_6MM_ACCKIT.jpg "Cobra Midi Accessory Kit [sku] MIDCO/***/ACCKIT")
![Repair Splice 4.5mm [sku] MIDCORK/4.5](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCORK_4o5-1.jpg "Repair Splice 4.5mm [sku] MIDCORK/4.5")
![Spare Rod 4.5mm [sku] MIDCO***S4.5](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/Midi-Cobra-Rod-Category-Image.jpg "Spare Rod 4.5mm [sku] MIDCO***S4.5")
![Midi Cobra Steel Shackel [sku] MIDCOSSH](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCOSSH-1.jpg "Midi Cobra Steel Shackel [sku] MIDCOSSH")
![Black Ball End M5 [sku] MIDCO/BE5](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/MIDCO_BE5-1.jpg "Black Ball End M5 [sku] MIDCO/BE5")
![Mini Cobra Frame [sku] 4.5MINI-ASSEMBLED](https://cdn-kekmh.nitrocdn.com/TgCxvmnSkVNcXoxJPbVdFYocHkCwbLPj/assets/images/optimized/rev-a276ec8/cobraductrods.com/wp-content/uploads/2023/06/4o5MINI-ASSEMBLED.jpg "Mini Cobra Frame [sku] 4.5MINI-ASSEMBLED")
