FLEXITRACE DUCT TRACING SYSTEM 4.5mm

20m – 100m lengths
4.5mm diameter traceable rod
Dimensions W 440mm x H 490mm x D 260mm

Length

Clear

SKU: N/A Categories: Cobra Rodding, Flexitrace Continuous Trace System, Traceable Cable Duct Rodding Systems

Description
Technical Data
Downloads

The Flexitrace continuous trace system gives a compact and labour saving solution when locating non-metallic ducts and drains.

This provides the benefits of a sonde and a continuous trace system in one compact unit. An improved coil size of 8.1mm diameter allows far better flexibility when rodding through small diameter ducts, 15mm water and gas pipes, including the joints and bends on those pipes down to a bend radius of approximately 250mm.

Total overall dimensions W 440mm x H 490mm x D 260mm.

There are two main methods to use the Flexitrace:

SONDE MODE

Trace - Sonde Mode

To locate the sonde within a non-metalic duct or drain, you need to energise the end coil, to activate the sonde. This is done by connecting both of the Flexitrace’s terminals to the generator. This will allow you to determine the end point and the depth of your duct or drain.

LINE MODE

Trace - Line Mode

To locate the direction of the non-metalic duct or drain, attach a signal generator to one of the terminals of the Flexitrace and an earth stake (or other independant earth). The Flexitrace can be pushed the length of the duct or drain and then traced along it’s complete length with a Cable Avoidance Tool (CAT Receiver).

The compact size of the end coil (8.1mm diameter) and the flexibility of the 4.5mm rod make the Flexitrace particularly suitable for locating narrow ducts. Suitable for use with most C.A.T and signal generator systems.

ROD

FlexiTrace Rod

Highest quality 4.5mm or 6mm reinforced fibreglass rod complete with two 0.5mm copper trace wires.
UV inhibited coating.
Fitted with tuned coil in robust nylon housing at 8.1mm diameter.

FRAME

FlexTrace Frame

Rugged steel construction with weatherproof powder coat finish.

Incorporating compact junction box fitted with quality screw lugs suitable for attaching feeds from a signal generator by fork terminals or crocodile clips.

KEY FEATURES

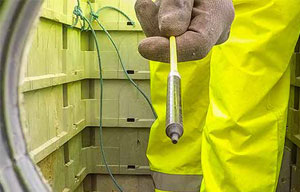

Flexi 4.5 - Sonde

SONDE

Used to determine the end point and depth of your non-metallic duct or drain

Key Feature - Traceable Rod

FULL ROD TRACEABILITY

Trace the route of your non-metallic duct or drain from above ground

Flexi 4.5 - Lightweight

LIGHTWEIGHT AND COMPACT

Fits in small vehicles

KEY TECHNICAL DATA

STANDARD FLEXITRACE DUCT TRACING SYSTEM LENGTHS

4.5mm Rod

Product Code	Diameter	Length	Weight
MIDCO20TC4.5	4.5mm	20m	3.85Kg
MIDCO30TC4.5	4.5mm	30m	4.12Kg
MIDCO40TC4.5	4.5mm	40m	4.38Kg
MIDCO50TC4.5	4.5mm	50m	4.65Kg
MIDCO60TC4.5	4.5mm	60m	4.91Kg
MIDCO80TC4.5	4.5mm	80m	5.44Kg
MIDCO100TC4.5	4.5mm	100m	5.97Kg

Other lengths available on request.

Additional information

Rod Diameter	4.5mm
Length	20m, 30m, 40m, 50m, 60m, 80m, 100m
Dimensions W x L x H	260mm x 440mm x 490mm
Pipe Diameter	30 – 80mm
Breaking Load	1100Kg
Max Bending Radius	150mm

Downloads

Download the Cobra Rodding Brochure
Flexitrace 4.5mm datasheet
