FLEXITRACE DUCT TRACING SYSTEM 6mm
- 50m – 150m lengths
- 6mm diameter traceable rod
- Dimensions W 680mm x H 710mm x D 280mm.
The Flexitrace continuous trace system gives a compact and labour saving solution when locating non-metallic ducts and drains. This provides the benefits of a sonde and a continuous trace system in one compact unit. An improved coil size of 10.2mm diameter allows far better flexibility when rodding through small diameter ducts, 22mm water and gas pipes, including the joints and bends on those pipes down to a bend radius of approximately 250mm. Total overall dimensions W 680mm x H 710mm x D 280mm.

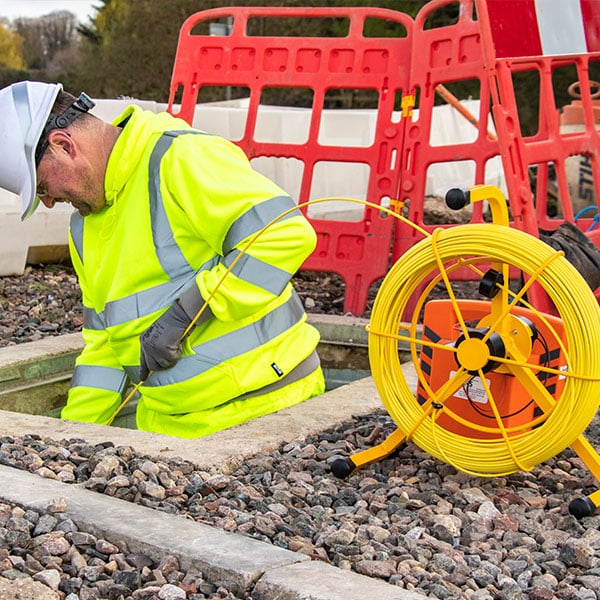

Sonde Mode
To locate the sonde within a non-metalic duct or drain, you need to energise the end coil, to activate the sonde. This is done by connecting both of the Flexitrace’s terminals to the generator. This will allow you to determine the end point and the depth of your duct or drain.

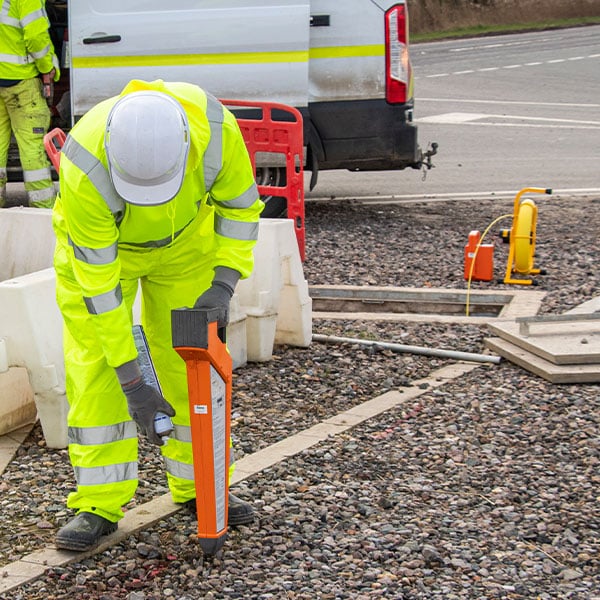

Line Mode
To locate the direction of the non-metalic duct or drain, attach a signal generator to one of the terminals of the Flexitrace and an earth stake (or other independant earth). The Flexitrace can be pushed the length of the duct or drain and then traced along it’s complete length with a Cable Avoidance Tool (CAT Receiver).

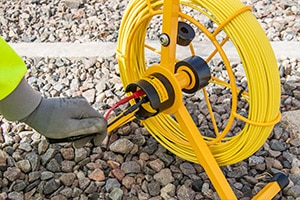

ROD
- Highest quality 6mm reinforced fibreglass rod complete with two 0.5mm copper trace wires.
- UV inhibited coating.
- 6mm fitted with tuned coil in robust nylon housing at 10.2mm diameter.

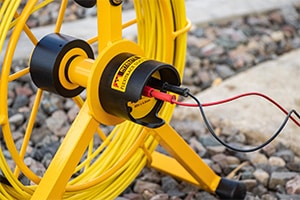

FRAME
Rugged steel construction with weatherproof powder coat finish.

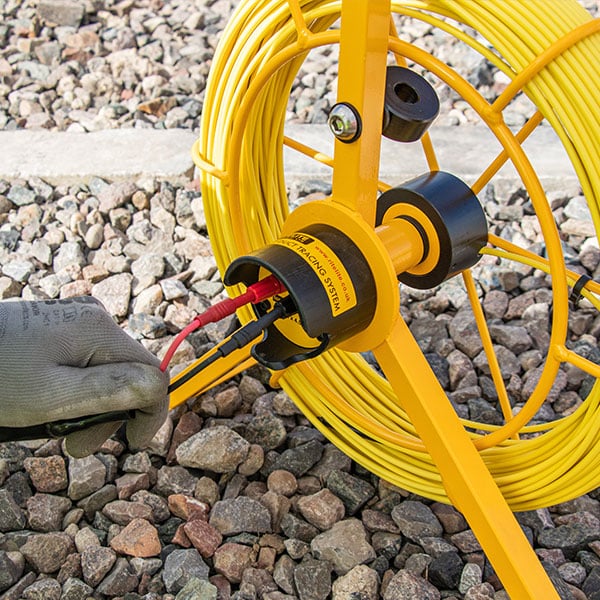

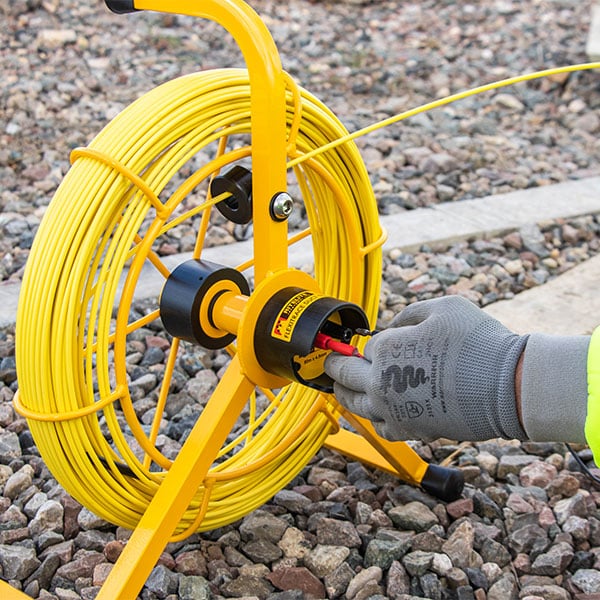

Incorporating compact junction box fitted with quality screw lugs suitable for attaching feeds from a signal generator by fork terminals or crocodile clips.
Key Features
SONDE
Used to determine the end point and depth of your non-metallic duct or drain
TRACEABLE ROD
Ideal to trace the route of your non-metallic duct or drain
LIGHTWEIGHT AND COMPACT
Fits in small vehicles
Key Technical Data
Standard Flexitrace Duct Tracing System lengths.
Other lengths available on request.
6mm Rod
| Product Code | Diameter | Length | Weight |
| MIDCO50TC6.7 | 6mm | 50m | 7.45Kg |
| MIDCO60TC6.7 | 6mm | 60m | 7.88Kg |
| MIDCO80TC6.7 | 6mm | 80m | 8.76Kg |
| MIDCO100TC6.7 | 6mm | 100m | 9.64Kg |
| MIDCO120TC6.7 | 6mm | 120m | 10.52Kg |
| MIDCO150TC6.7 | 6mm | 150m | 11.84Kg |
Additional information
| Rod Diameter | 6mm |
|---|---|
| Length | 50m, 60m, 80m, 100m, 120m, 150m |
| Dimensions W x L x H | 280mm x 680mm x 710mm |
| Pipe Diameter | 40 – 100mm |
| Breaking Load | 1970Kg |
| Max Bending Radius | 200mm |
