Traceable Cable Duct Rodding Systems

Ritelite manufacture a range of traceable rodding systems to enable ducts and pipes to be traced and marked from above the ground to identify duct or pipe runs or locate blockages.

Cobra - Flexitrace

Continually trace during deployment or retrieval with an active signal the whole time the rod is moving. Signal generation system continuously connected during use.

  • High quality 4.5mm or 6mm traceable fibreglass rod
  • Lengths from 20m – 150m
  • Range of frame sizes available
Cobra - Quicktrace

Multi-purpose rodding system to be used as standard system or full length trace system once signal generation connected.

  • High quality 4.5mm, 6mm, 9mm or 11mm traceable fibreglass rod
  • Lengths from 30m – 300m
  • Range of frame sizes available

How Ritelite Traceable Rodding Systems offer 2 different ways of duct locating

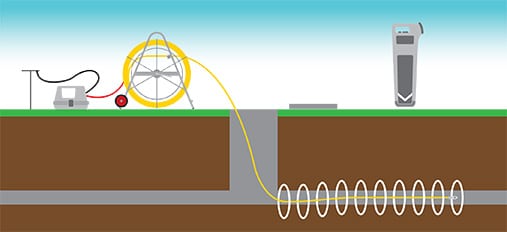

Quick Trace Method of Use
The ‘Quick Trace’ model of duct rodding systems includes copper wires embedded in the rod which allows the rod to be fully traceable once a signal generator is connected for additional functionality.
Trace - Line Mode

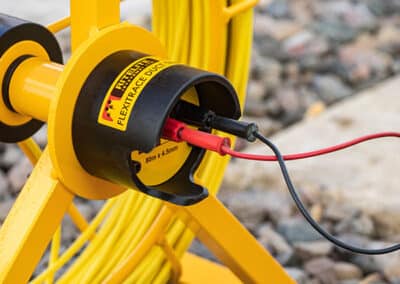

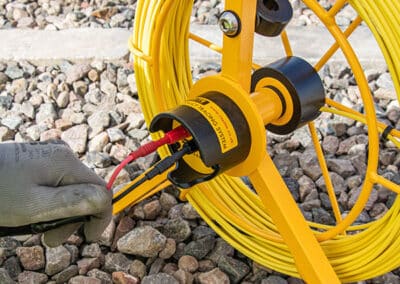

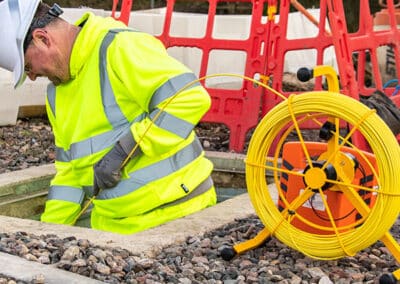

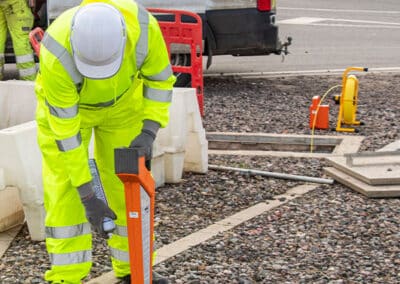

Flexitrace Methods of Use

The Flexitrace continuous trace system gives a compact and labour saving solution when locating non-metallic ducts and drains. This provides the benefits of a sonde and a continuous trace system in one compact unit.

Sonde Mode
Trace - Sonde Mode
Line Mode
Trace - Line Mode

Battery Operated Sonde Transmitters

Sondes are self-contained battery-operated transmitters that can be fitted to all Ritelite cobra rodding systems with the correct sonde adaptor to trace the rod through ducts and pipes to locate blockages.

ACCESSORIES AND SPARES

What is a Cobra Duct Rod used for?

What is a Cobra Duct Rod used for?

Cobra duct rods are used in many industries including telecommunications, Electricity and plumbing and Detection when installing cables, pulling draw ropes, surveying drains and ducts and locating blockages. Find out more about the different applications.

read more
How to use a Ritelite Cobra Duct Rodding System

How to use a Ritelite Cobra Duct Rodding System

It is important that Ritelite’s Cobra Duct Rods are used properly and safely in all applications that they are commonly used in. These are some general instructions to help users set up and operate our rodding systems including things to check before use.

read more
